DR-1801 Walkie Talkie
Baofeng DMR Two Way Radio Dual Band Tier I Tier II Dual Time Slot Uhf Digital Poste Radio Voiturericetras

★About New Programming and Software

The DR-1801 is upgraded from the DM-1801. In order to distinguish the old version, it adopts a new programming software, which is compatible with the PL-2303 programming cable, which easily solves the problem of the DMR digital two way radio programming.

★Digital walkie talkie

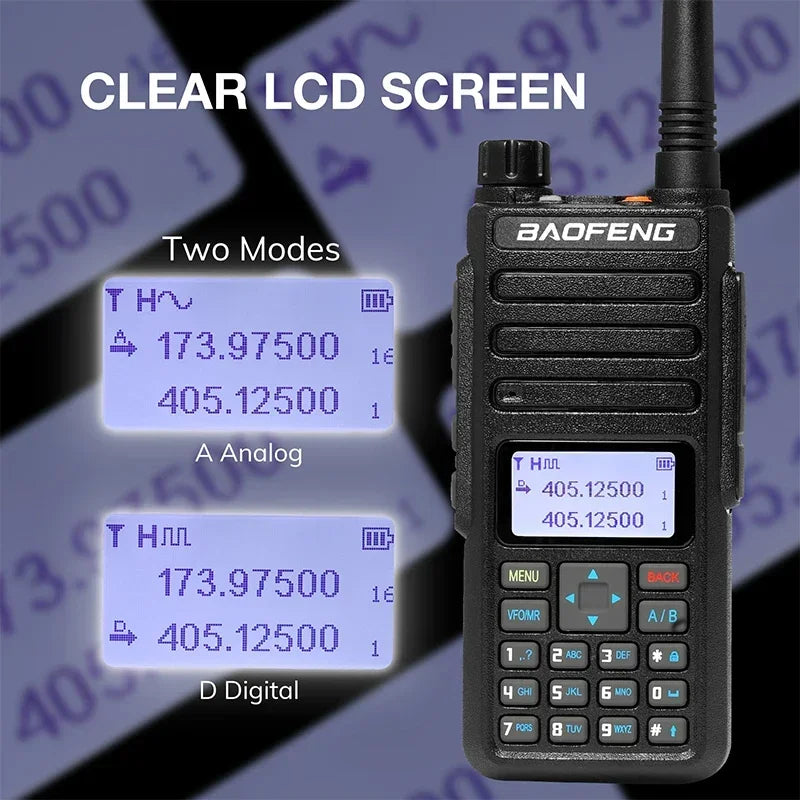

Baofeng DR-1801 digital walkie talkie with 1.44" LCD color display, dual band 136-147/400-470mHz, 1024 channels, dual mode (digital, analog) and dual time slots - more channels for enhanced privacy. Analog and digital DMR Tier I and II, Perfectly compatible with Motorola and other DMR radio; high/low power settings

★Upgrade from BaofengWalkie Talkie

999 Memory Channel; CTCSS/DCS; VOX Mode for Hands-Free; A/B band independent operation; Dual band; dual display; dual standby Auto Keypad Lock.

★Connect the repeater

The DR1801 can reach the highest output power levels for handheld devices, and it can also be used with repeaters, which will help it get stronger signals and reach longer distances.

★SMS Receiving and Sending

You can use our DMR walkie-talkie to send text messages to your friends, and also receive text messages from other DMR devices.

★More keypad operations

Channel names, TX & RX frequencies, VOX, channel number, tones, and etc. can all be programmed through the keypad. Users can also customize the top and side buttons for their favorite functions.

Product Description:

All of our items are Brand New

Frequency Range:VHF:136-174MHz, UHF:400-470MHz (Dual Band)

Memory Channel:1024

Operating Voltage:DC 7.4V

Frequency stability:±1.0ppm

Demission:133*62*32mm (no including the antenna)

Operating environment:-30℃-+60℃

Weight:Approach.274g(including the battery and antenna)

Transmitter

Output power: High:5W / Low1W

Adjacent channel power:≤65dB ≤60dB

Output consumption:Analog≤1.6A Digital≤0.9A

Audio response:+1~3dB

Standby current consumption:≤0.18A

Digital Protocol:ETSI-TS102 361-1,-2,-3

Modulation distortion:≤5%

Vocoder type:AMBE+2 TM

FM/FM modulation:16K￠F3E,25KHz 141K￠F3E,20KHz 11K￠F3E,12.5KHz

4FSK/4FSK digital modulation:12.5KHz for data:7K60FXD 12.5KHz for data and

voice:7K60FXE

Signal-to-noise(wide/narrow):≥45dB,25KHz ≥40dB,12.5KHz

Antenna Port Spurious:9KHz-1GHz ≤-36dBm 1GHz-12.75GHz: ≤-30dBm

Receiver

Analog receive sensitivity:-122dBm (12dB SINAD)

Digital receive sensitivity:-122dBm (BER≤5%)

Audio power:1W

Audio distortion:<10%

Signal imitation:≥70dB

Audio response:+1~3dB

Receive current:≤380mA

Intermediation(wide/narrow):≥62dB/≥58dB

Adjacent channel selectivity:≥65dB/≥60dB

PM noise:≥45dB,25KHz / ≥40d

Features:

1) IP45 life waterproof (Splash waterproof protection).

2) LED display screen.

3) 5W power

4) U/V Dual band transceiver.

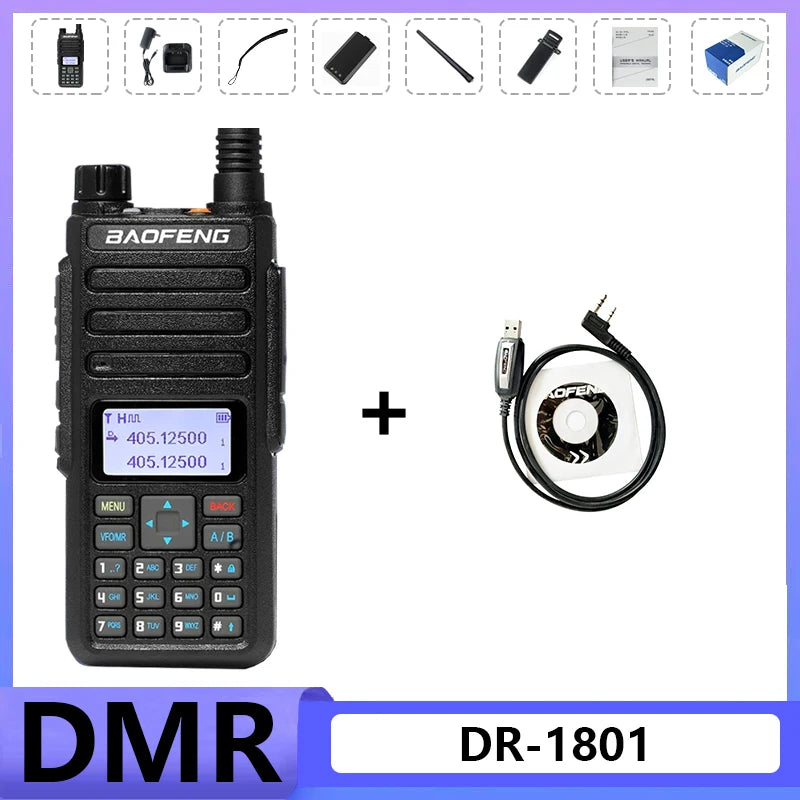

5) Computer program.

6)Up to 1024 memory channels.

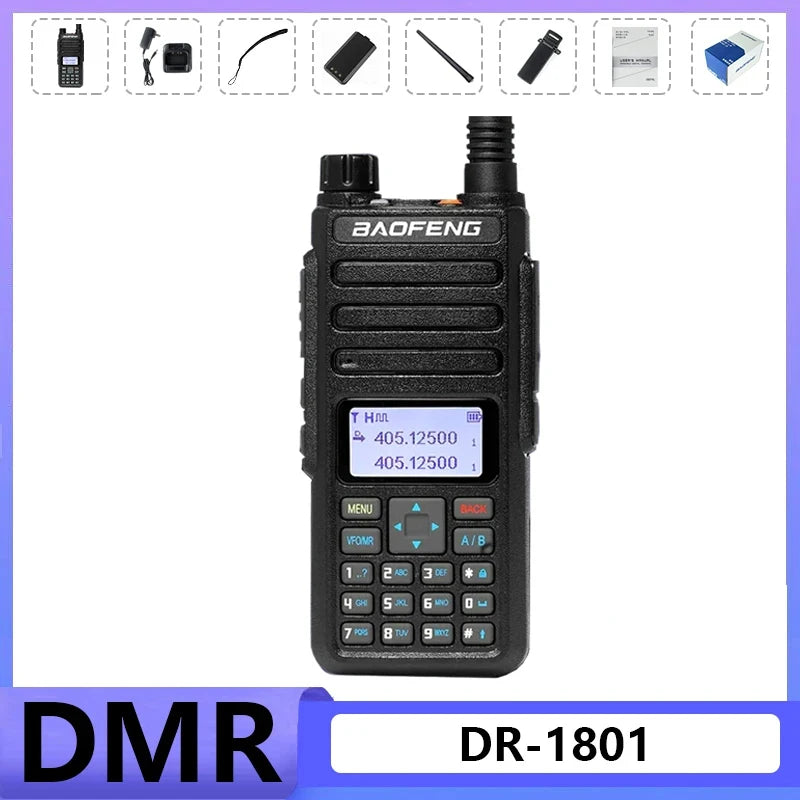

Package include:

1 X Portable radio

1 X Antenna

1 X Li-ion battery pack

1 X Belt clip

1 X The Sling

1 X Charger

1 X User's manual

(And other accessory depend on your choice in the link)
